ERA-A3-Shaker
EraSmart
| Availability: | |
|---|---|
| Quantity: | |

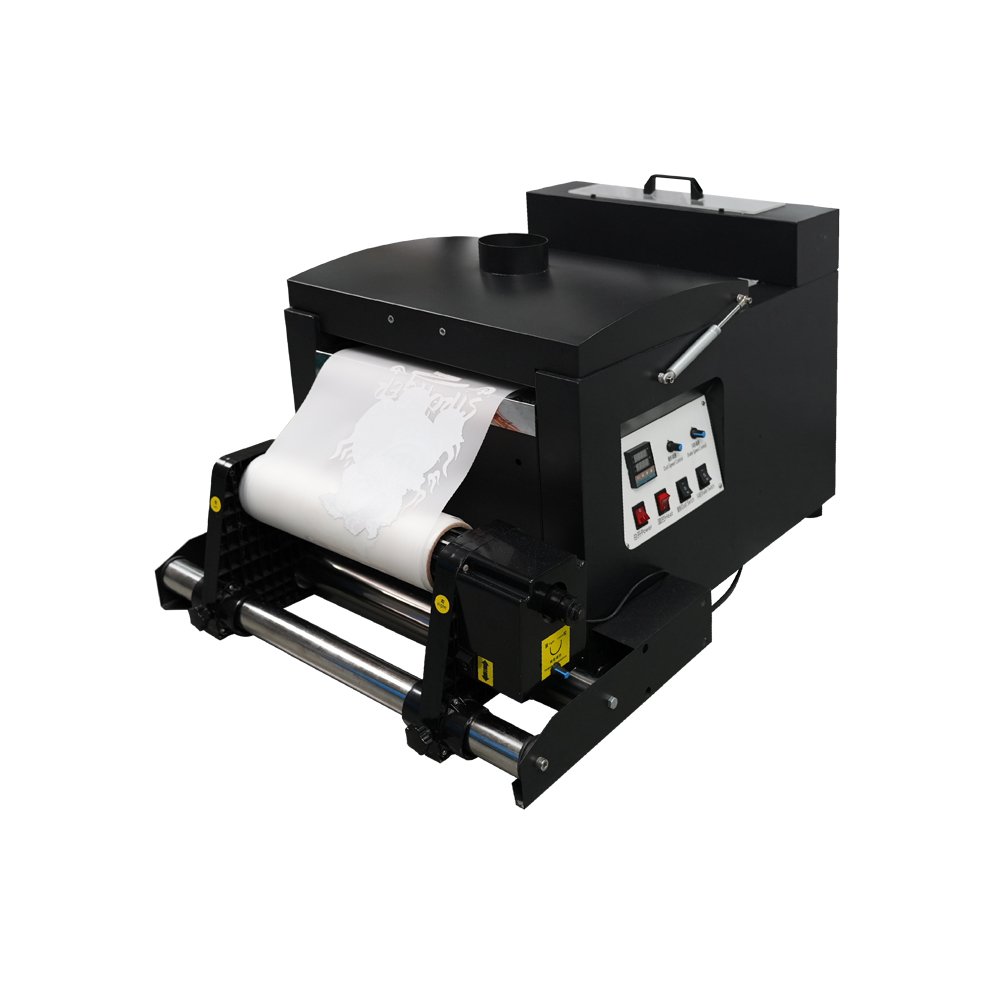

EraSmart DTF Powder Shaker for Enhanced Roll-to-Roll Printing Flow
The A3 DTF Powder Shaking Machine is engineered to effectively complement your DTF printing setup. This machine is crucial for achieving high-quality, durable prints by evenly distributing adhesive powder and then expertly curing it onto the DTF film. Its 380mm feed width accommodates common film sizes, making it a versatile choice for various production needs.
At its core, the A3 uses an infrared carbon fiber heating tube for fast and consistent drying, ensuring the powder melts and bonds properly to the film. The 400mm vertical drying tunnel provides an efficient environment for thorough curing. The intelligent control system gives you precise command over heating temperature, powder shaking speed, and powder sprinkling speed. This allows you to fine-tune settings based on your specific ink and powder types, ensuring consistent, professional output. The automatic film winding method helps ensure smooth, continuous operation, reducing the need for manual handling and boosting your overall productivity. The A3 is designed to provide a more reliable and efficient DTF printing experience.
| Parameter | Detail |
| Product Model | A3 |
| Feed Width | 380mm |
| Heating Method | Infrared Carbon Fiber Heating Tube |
| Voltage | 220V/110V |
| Rated Power | 1500W |
| Drying Tunnel Length | 400mm |
| Drying Tunnel Type | Vertical |
| Control System | Intelligent Control System |
| Heating Temperature | Adjustable |
| Shaking Powder Speed | Adjustable |
| Sprinkling Powder Speed | Adjustable |
| Winding Film Speed | Automatic |
| Winding Film Method | Automatic |
| Application | Roll DTF Film Printing |
Precise Powder Application: With adjustable shaking and sprinkling speeds, the A3 helps ensure an even and consistent powder coating. This is vital for strong adhesion and high-quality print transfers.
Efficient Curing: The infrared carbon fiber heating tube combined with a 400mm vertical drying tunnel provides quick and uniform curing. This helps prevent issues like under-curing or over-curing, contributing to more durable prints.
Intelligent Control: The intelligent control system gives you granular control over key parameters. You can easily optimize settings for different films and powders, leading to more consistent and professional results.
Automated Workflow: Featuring automatic film winding, the machine minimizes manual intervention. This supports continuous operation, potentially improving your overall production efficiency.
Versatile Compatibility: A 380mm feed width means the A3 is compatible with a range of common DTF film sizes, offering flexibility for various printing projects.
Prepare the Machine:
Place your A3 machine on a stable, level surface.
Connect the machine to a compatible 220V or 110V power supply.
Load your printed DTF film onto the machine's feed mechanism.
Fill the powder reservoir with your DTF adhesive powder.
Power Up and Set Parameters:
Turn on the main power switch.
Using the intelligent control system, set your desired heating temperature. Your powder supplier's recommendations are a great starting point.
Adjust the shaking powder speed and sprinkling powder speed based on the type of film and powder you're using.
Begin Operation:
Carefully feed the leading edge of your printed DTF film into the machine's entry point.
The machine will automatically begin the sequence of powder application, shaking, curing, and winding.
Monitor the process to ensure even powder distribution and proper curing. Make small adjustments to speeds or temperature if needed.
Finish & Collect:
Once your print run is complete, the machine will automatically wind the cured film onto the take-up reel.
Turn off the machine and carefully remove the wound film.
Q1: What types of DTF film are compatible with this machine?A1: The A3 DTF Powder Shaking Machine works with roll DTF film up to a feed width of 380mm. This covers most standard roll DTF films available.
Q2: Can I adjust the heating temperature?A2: Yes, the heating temperature is fully adjustable through the intelligent control system. This allows you to fine-tune it for different DTF powder types and ambient conditions to achieve optimal curing.
Q3: How do I clean and maintain the machine?A3: The A3 is designed for straightforward maintenance. We recommend regularly cleaning powder residue from the collection tray and around the heating tunnel to ensure best performance. Detailed cleaning instructions will be included in the user manual.
Q4: Does the machine collect excess powder for reuse?A4: The machine is designed to manage excess powder. While some designs may have features for powder collection, it's generally recommended to use fresh powder for optimal transfer results. You'll need to regularly empty any excess powder collection areas.
Q5: What are the power requirements for the A3 machine?A5: The DTF Powder Shaking Machine (Model A3) operates on either 220V or 110V power, with a rated power of 1500W. Please ensure your power supply matches these specifications.
