ERA-A3-OVEN
EraSmart
| Availability: | |
|---|---|
| Quantity: | |

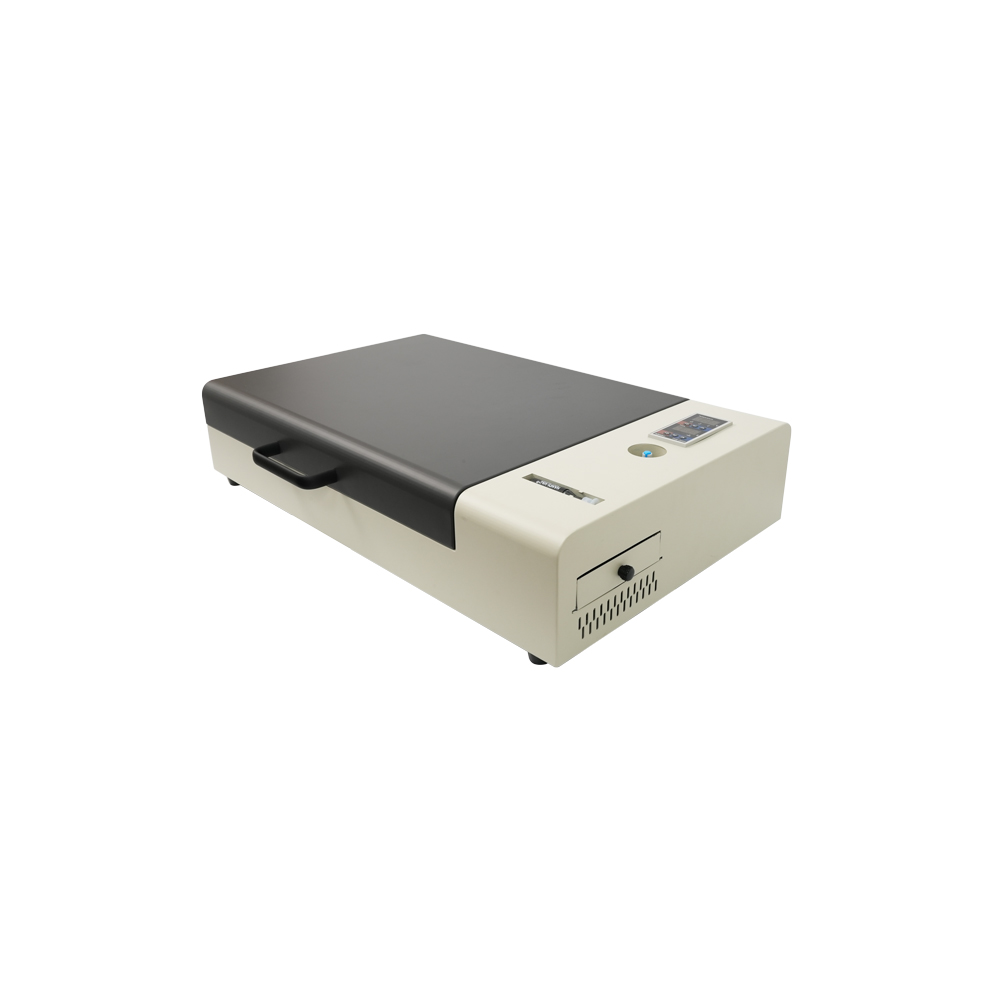

EraSmart A3 DTF Curing Oven with Countdown for Quality Melting
Integrated Air Purifier: Significantly reduces fumes and odors generated during the DTF powder melting process, ensuring a more pleasant and safer working environment.
Generous Curing Area: A spacious 35 x 50 cm (13.8 x 19.7 inches) heating platform perfectly accommodates A3-sized DTF films, boosting your production efficiency for larger designs.
Precision Curing: Employs a contact heating plate for uniform and consistent melting of DTF powder, crucial for achieving vibrant, durable, and soft-hand transfers.
Customizable Settings: Easily adjust heating temperature (0-130℃) and heating time (0-999 seconds) to fine-tune the curing process for various DTF films and powders.
Reliable & Powerful: Operates with a 700W rated power and is available in 220V/110V configurations for stable and effective performance.
Elevate your DTF workflow with the DTF Oven A3 featuring an integrated air purifier. This innovative oven directly addresses the common concern of fumes and odors associated with DTF powder curing. The built-in purification system actively filters the air, creating a noticeably cleaner and more comfortable workspace.
Beyond air quality, the A3 oven excels in performance. Its substantial 35 x 50 cm heating platform provides ample space for larger designs, reducing the need for multiple curing cycles and improving overall productivity. The contact heating method ensures that heat is applied directly and evenly to the film, resulting in a consistent, complete melt of the adhesive powder. This precision curing is vital for achieving optimal wash fastness, vibrant colors, and that desirable soft feel on your finished garments. With user-friendly controls for temperature and time, you have the flexibility to dial in the perfect settings for any DTF project, making this oven a smart investment for expanding your DTF capabilities.
Attribute | Specification |
Product Name | DTF Oven Built-in Purifier |
Product Model | A3 |
Heating Platform Size | 35 x 50 cm (13.8 x 19.7 inches) |
Heating Method | Heating Plate |
Heating Type | Contact Heating |
Heating Temperature | 0-130℃ (32-266°F) adjustable |
Heating Time | 0-999 Seconds adjustable |
Voltage | 220V / 110V (selectable) |
Rated Power | 700W |
Application | DTF Powder Melting |
Using your DTF Oven A3 for optimal results is a straightforward process. Follow these steps for perfect powder curing every time:
Prepare Your Film: Carefully lay your freshly powdered DTF film onto the heating platform. Important: Ensure the printed image side is facing up, with the film itself resting on the heating surface.
Set Temperature & Time: Adjust the temperature and time settings using the control panel. Always start by referring to the powder manufacturer's recommendations for their specific powder and film.
Initiate Curing: Close the oven. The contact heating plate will then begin to melt the DTF powder evenly.
Remove & Cool Safely: Once the set time is complete, carefully open the oven. To prevent burns, we recommend using the film absorption pen (or a similar heat-resistant tool) that comes with your oven to safely remove your cured film. Allow the film to cool completely before proceeding with the transfer process.
For consistent, high-quality results, always consult the specific curing instructions provided by your DTF film and powder suppliers, and make minor adjustments based on your working environment.
Q: How does the built-in purifier work?A: The purifier system draws in air from the curing chamber, filters out fumes and odors, and exhausts cleaner air, providing a more comfortable and less irritating environment.
Q: What is the ideal temperature and time for curing?A: Recommended settings vary depending on the specific DTF powder and film you are using. Always refer to your material supplier's guidelines. A common starting point is often around 100-120°C for 100-120 seconds, but this can differ.
Q: Can I cure other materials in this oven?A: This oven is specifically designed and optimized for melting DTF powder on DTF film. Using it for other materials is not recommended and may not yield optimal results or could damage the unit.
Q: Is this oven suitable for small to medium-sized businesses?A: Yes, with its A3 heating platform and built-in purifier, it's an excellent choice for small to medium-sized businesses looking to increase their DTF production efficiency and improve their workspace.
Q: How do I clean the heating plate and maintain the purifier?A: Ensure the oven is unplugged and completely cool. Gently wipe the heating plate with a soft, dry cloth. For the purifier, follow the manufacturer's instructions for filter replacement or cleaning, typically found in the user manual.
