A UV Printer can produce sharp graphics on acrylic, plastic, glass, metal, wood, ceramic, leather, and many other materials. Yet the machine will only keep producing consistent results when it receives regular care.
UV printers are not especially difficult to maintain, but they do not respond well to neglect. A printer that sits unused with ink in the printhead may develop blocked nozzles. Dust on the platform can affect positioning. Dried ink around the capping station may prevent the printhead from sealing correctly. None of these issues sounds serious at first, but together they can turn a normal print job into a morning of troubleshooting.
The best maintenance routine is not complicated. It is a combination of short daily checks, scheduled cleaning, suitable operating conditions, and proper shutdown procedures. A few minutes of preventive care usually costs far less than replacing a printhead or reprinting an entire batch of products.
Before printing customer orders, run a nozzle test.
The test pattern shows whether each ink channel is firing correctly. A complete pattern should have clean, continuous lines. Missing sections, broken lines, or uneven areas usually indicate that some nozzles are not working properly.
Do not ignore a minor gap just because the rest of the pattern looks acceptable. One missing nozzle may not be obvious on a colorful photograph, but it can show up clearly in solid colors, fine text, or smooth gradients.
When the test pattern is incomplete, begin with the machine’s standard cleaning function. Run another nozzle test afterward. Repeatedly using the strongest cleaning mode is rarely the best first response because heavy cleaning consumes more ink and places additional stress on the ink system.
If a normal cleaning cycle does not solve the problem, inspect the capping station, wiper, ink supply, and printhead surface before continuing.
It can be tempting to continue production when an order is urgent. That usually creates more work.
A blocked color channel may produce banding or incorrect color. A weak white ink channel can leave dark or transparent materials with uneven coverage. Once the product has been printed, the defect may not be repairable.
A nozzle check takes only a short time. Reprinting twenty phone cases or acrylic signs takes much longer.
The printhead is one of the most sensitive and expensive components in a UV Printer. It should be cleaned carefully and only with suitable materials.
Ink mist, dust, and small particles can collect around the underside of the printhead. Over time, this buildup may interfere with droplet direction or transfer debris onto the printed surface.
Use the cleaning fluid and lint-free materials recommended for the machine. Avoid ordinary tissues, cotton fibers, or rough cloths, as they can leave particles behind or damage the nozzle plate.
When cleaning, do not press hard against the printhead. The goal is to remove ink residue gently, not scrub the surface.
It is also important to distinguish between cleaning around the printhead and wiping directly across the nozzle plate. Direct contact should be kept to a minimum and carried out according to the manufacturer’s procedure.
The capping station seals against the printhead when the printer is idle. It helps prevent the nozzles from drying and allows the cleaning system to draw ink through the head.
If dried ink accumulates around the cap, the seal may become incomplete. The printer may then struggle to clean the printhead properly, even though the automatic cleaning cycle appears to run normally.
Inspect the cap for:
Dried or sticky ink
Dust and fibers
Deformed rubber edges
Poor drainage
Ink overflowing into the surrounding area
The wiper also needs attention. Its job is to remove excess ink from the underside of the printhead. A dirty or damaged wiper may spread residue instead of removing it.
Clean both parts with the recommended solution. If the rubber has hardened, cracked, or lost its shape, replacement is usually more effective than continued cleaning.
White ink requires more care than standard CMYK ink because it contains heavier pigment.
When the printer is idle, that pigment can settle in the ink bottle, tubes, dampers, or printhead. The result may be weak white coverage, inconsistent output, or blocked nozzles.
Many modern UV printers include white ink circulation or stirring systems. These features help, but they do not make the white ink system maintenance-free.
Check that the circulation system is operating properly. If the machine uses a separate white ink bottle, follow the supplier’s instructions for shaking or stirring it. Do not shake the bottle aggressively while it is connected if that could introduce air bubbles into the ink lines.
White ink should also be used regularly. A printer that produces only CMYK work for long periods may still need a white ink test or circulation routine.
If white areas begin to look grey, thin, or uneven, do not immediately increase the ink density in the RIP software.
First check the nozzle pattern, circulation system, ink condition, and printhead alignment. Increasing ink output may temporarily hide the problem while creating thicker layers and higher ink consumption.
The flatbed should be cleaned before dust and adhesive residue become part of the next print.
Small particles can lift the product slightly, interfere with vacuum suction, or create uneven printing height. On transparent materials, even a tiny speck of dust may be visible beneath the finished image.
Remove loose debris with appropriate cleaning tools and wipe the platform with a material-safe cleaner. Avoid allowing liquid to enter vacuum holes, sensors, rails, or electrical components.
For jobs that use fixtures or jigs, clean those as well. Dried ink around a fixture can prevent products from sitting in the correct position.
Check that the platform remains level. If prints appear sharper on one side than the other, or the printhead gap changes across the bed, platform alignment may need inspection.
The room around the printer affects machine performance more than many operators expect.
A dusty workshop increases the chance of contamination on the printhead, guide rails, encoder strip, ink system, and product surface. Grinding, sanding, packaging, and fabric work should not be carried out directly beside an open UV Printer.
Temperature also affects ink flow and curing. A room that is too cold may make ink movement less stable. Excessive heat can change viscosity, accelerate evaporation around maintenance components, and place extra load on the machine.
Humidity that is too low may increase static electricity, especially when printing on plastic and acrylic. High humidity can create other issues with materials and electrical equipment.
Use the environmental range recommended by the printer and ink supplier. More importantly, keep conditions reasonably stable. Sudden changes between a cold night and a hot working day can affect print consistency.
Check ink levels before starting a long job. Running a channel too low can introduce air into the lines, which may lead to nozzle loss and repeated cleaning.
Look over the bottles, tubes, dampers, filters, and connectors for:
Air bubbles
Ink leaks
Loose fittings
Discolored or separated ink
Bent tubing
Restricted ink flow
Small air bubbles may sometimes move through the system without causing a lasting problem, but a continuous stream of bubbles usually indicates a loose connection, poor seal, or low ink level.
Use compatible UV ink and avoid mixing products from different suppliers without testing. Two inks may both be described as UV ink but have different viscosity, curing behavior, adhesion, and chemical composition.
When changing ink types, the system may require flushing. Pouring a new ink directly into a system containing the old one can produce unstable results or damage components.
The encoder strip helps the printer determine the position of the carriage. Ink mist, dust, or fingerprints on the strip may cause positioning errors, unusual carriage movement, or image misalignment.
Clean it gently with the material recommended by the supplier. Do not scratch, stretch, or pull the strip.
Guide rails should also be kept free of dust and hardened ink. Lubrication requirements vary between machines, so do not apply general-purpose oil without checking the maintenance manual. Too much lubricant can attract dust and spread into areas where it does not belong.
Listen to the carriage during operation. Grinding, knocking, or sudden changes in movement should be investigated rather than accepted as normal wear.
UV lamps cure the ink as it is printed. If curing becomes weak or uneven, the surface may remain soft, scratch easily, or fail an adhesion test.
Keep the lamp area clean and free from ink mist or dust. Check the cooling fans and ventilation openings, since overheating may reduce lamp performance or interrupt production.
UV LED lamps usually have a long operating life, but their output can still decline over time. If a familiar material suddenly needs slower printing or stronger curing settings, the lamp should be inspected along with the ink and surface preparation.
Do not look directly at operating UV lamps. Follow the machine’s safety instructions and keep protective covers in place during printing.
Primer can improve adhesion on glass, metal, ceramic, and certain plastics, but careless use can create maintenance problems.
Apply primer only to the product surface. Avoid spilling or spraying it near the printhead, rails, sensors, or machine housing. Some primers dry quickly and leave a hard residue that is difficult to remove.
Cleaning chemicals should also be selected carefully. Household cleaners, alcohol mixtures, and strong solvents may damage seals, coatings, plastic components, or the printhead.
Keep separate, clearly labeled materials for platform cleaning, product preparation, and printhead maintenance. Using the same cloth and chemical for every task is convenient, but it increases the risk of contamination.
Daily care focuses on nozzle condition and basic cleanliness. Weekly maintenance can be more thorough.
A typical weekly routine may include:
Cleaning the capping station and wiper
Inspecting the printhead underside
Checking ink tubes and connections
Cleaning the platform and fixtures
Inspecting the encoder strip
Removing dust from fans and vents
Checking the waste ink container
Confirming white ink circulation
Testing print alignment
Reviewing UV lamp performance
The exact schedule should depend on production volume. A printer operating eight hours a day needs more frequent inspection than a machine used for occasional samples.
Keep a maintenance record. A simple log showing cleaning dates, nozzle condition, replaced parts, and recurring problems makes it easier to identify patterns.
When the printer will not be used overnight or for a weekend, follow the normal shutdown procedure rather than switching off the power immediately.
Allow the carriage to return to its home position so the printhead can seal against the capping station. Confirm that the cap is clean and that the machine has completed any automatic moisturizing or cleaning process.
Some UV printers need to remain powered on so circulation and cleaning functions can operate. Others can be shut down after the head is capped. Follow the instructions for the specific machine.
Do not disconnect power simply because the printer is quiet. A circulation pump or scheduled cleaning function may still need electricity.
A UV Printer should not be left unused for several weeks with no preparation.
Long shutdowns may require the ink system to be flushed with cleaning or storage fluid. The printhead, dampers, tubes, and cap may need specific treatment to prevent ink from curing or settling inside them.
Covering the machine is useful, but only after it has been cleaned and prepared. A dust cover cannot protect ink that is drying inside the printhead.
Before restarting a stored printer, inspect the ink system, run the recommended startup procedure, and check the nozzle pattern. Do not begin with a customer product until output is stable.
Automatic cleaning is useful, but it cannot inspect the machine.
The printer does not know whether the cap has a damaged edge, the wiper is dirty, the ink bottle is nearly empty, or dust has collected on the product surface. Those issues still require an operator.
Excessive automatic cleaning can also waste ink and fill the waste container quickly. If the same nozzle problem returns after every cleaning cycle, repeating the cycle is not a maintenance strategy. The cause needs to be found.
Regular observation is often more valuable than simply pressing the cleaning button again.
Basic checks such as nozzle testing, platform cleaning, and waste-ink inspection should be carried out daily. The capping station, wiper, ink lines, encoder strip, and ventilation system should be inspected on a regular weekly or production-based schedule.
It can, provided the correct shutdown procedure is followed. The printhead should be properly capped, white ink circulation should remain active when required, and scheduled cleaning functions should not be interrupted.
White ink contains heavier pigment that can settle when it remains still. Circulation, stirring, regular printing, suitable room conditions, and correct cleaning help keep the white ink system stable.
Not unless the printer or printhead manufacturer specifically recommends it. Incorrect solvents can damage the nozzle plate, seals, coatings, or ink system. Use approved cleaning fluid and lint-free materials.

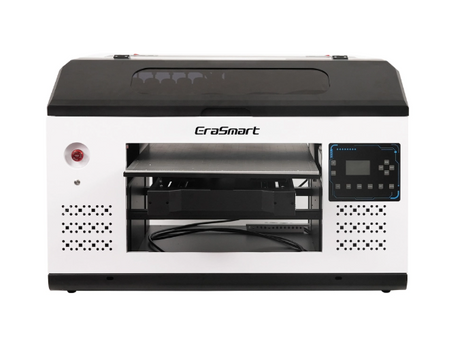

Choose a machine with accessible maintenance components, white ink circulation, automatic cleaning, reliable software, and available technical support. EraSmart provides compact UV Printer solutions for phone cases, acrylic products, promotional gifts, signage, wood, metal, glass, and other customization applications, with machine configurations designed to support practical operation, routine maintenance, and different workshop production needs.
